Seco

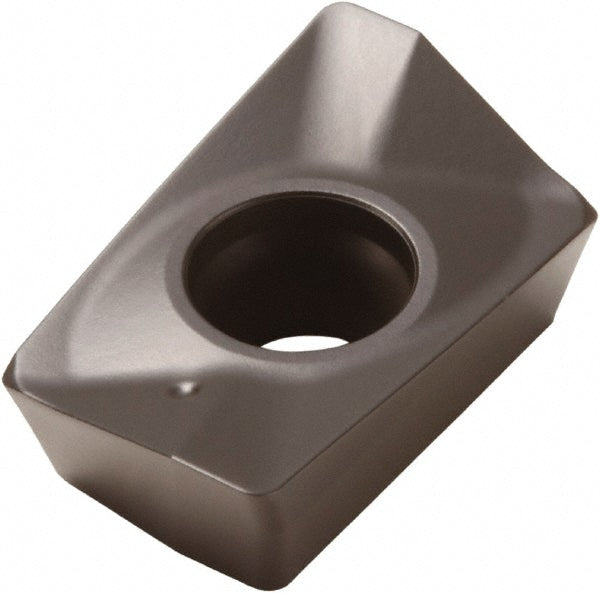

XOMX180608TR-M14 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02827867
MFR# 02827867ISO/ANSI# XOMX180608TR-M14Cat# XOMX180608TR-M14Series XOMX-18
$32.00List $41.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 02827867 is a XOMX180608TR-M14 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeXOMX180608TR-M14
Chip breakerM14
Coating finishTiSiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180608
Insert styleXOMX
Iso codeXOMX180608TR-M14
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180608TR-M14
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle15.5
Relief angle15
Secondary workpiece materialSteel; Hard Material
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.4409
