Seco

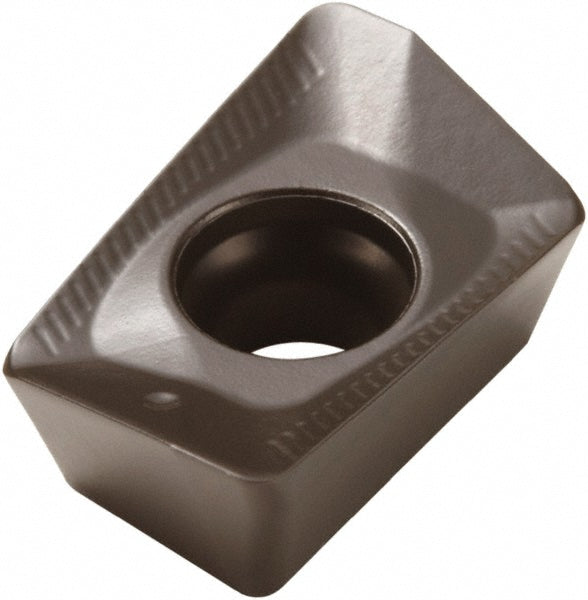

XOMX120408TR-ME08 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02827868
MFR# 02827868ISO/ANSI# XOMX120408TR-ME08Cat# XOMX120408TR-ME08Series XOMX-12
$29.82List $37.58
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 02827868 is a XOMX120408TR-ME08 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeXOMX120408TR-ME08
Chip breakerME08
Coating finishTiSiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.4567
Cutting edge styleT-Land
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleXOMX
Iso codeXOMX120408TR-ME08
Length0.4567
Length range0.4500 to 0.5000
Manufacturers catalog numberXOMX120408TR-ME08
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.4567
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle20.1
Relief angle15
Secondary workpiece materialSteel; Hard Material
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.1850 to 0.2000
Width0.3228
