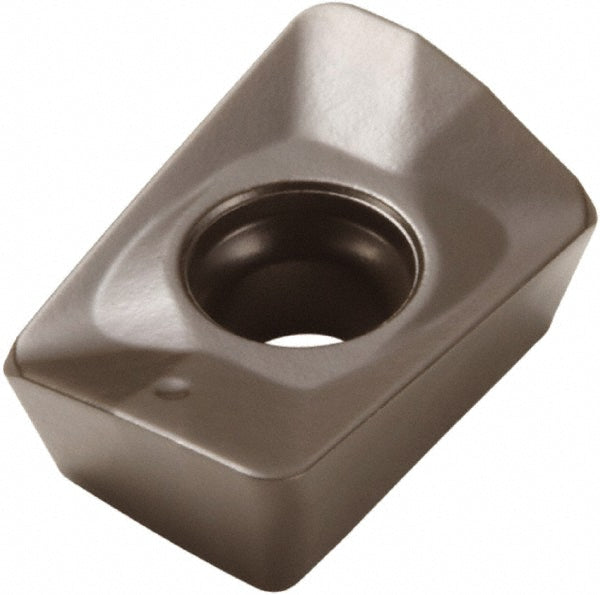

XOMX10T304TR-M09 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02827872

Seco

XOMX10T304TR-M09 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02827872

MFR# 02827872ISO/ANSI# XOMX10T304TR-M09Cat# XOMX10T304TR-M09Series XOMX-10

$23.40List $30.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN

Description

The Seco 02827872 is a XOMX10T304TR-M09 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.

Specifications

Ansi codeXOMX10T304TR-M09
Chip breakerM09
Coating finishTiSiN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityR217.69-10; R220.69-10
Cutting edge effective length0.3661
Cutting edge styleT-Land
Hole diameter0.1181
Included angle degree90
Inscribed circle0.2717
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T304
Insert styleXOMX
Iso codeXOMX10T304TR-M09
Length0.3661
Length range0.3200 to 0.4000
Manufacturers catalog numberXOMX10T304TR-M09
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.3661
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle10.6
Relief angle15
Secondary workpiece materialSteel; Hard Material
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1508
Thickness range0.1500 to 0.1750
Width0.2717
