Seco

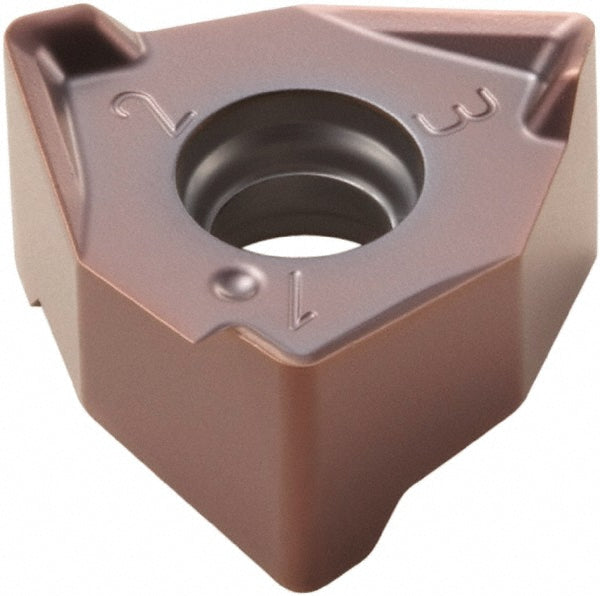

XNEX080608TR-M13 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02827880
MFR# 02827880ISO/ANSI# XNEX080608TR-M13Cat# XNEX080608TR-M13Series XNEX-08
$35.62List $45.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 02827880 is a XNEX080608TR-M13 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeXNEX080608TR-M13
Chip breakerM13
Coating finishTiSiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR220.96-08
Cutting edge effective length0.2953
Cutting edge styleT-Land
Hole diameter0.1811
Included angle degree88.28
Inscribed circle0.4913
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080608
Insert styleXNEX
Iso codeXNEX080608TR-M13
Length0.2953
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX080608TR-M13
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.2953
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle22
Relief angle0
Secondary workpiece materialSteel; Hard Material
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.4913
