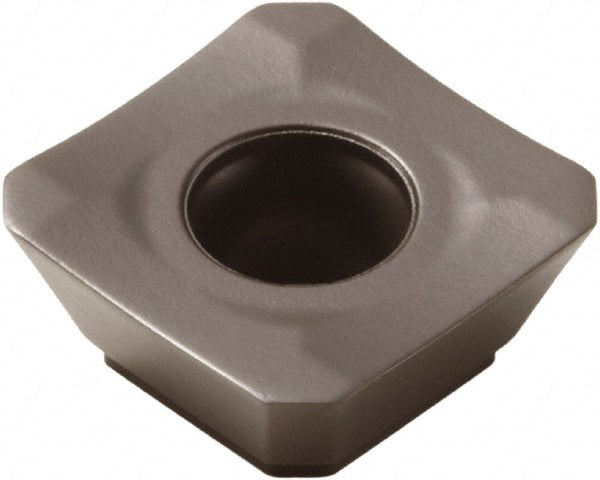

SEEX09T3AFTN-M08 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02827895

Seco

SEEX09T3AFTN-M08 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02827895

MFR# 02827895ISO/ANSI# SEEX09T3AFTN-M08Cat# SEEX09T3AFTN-M08Series SEEX-09

$20.20List $25.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN

Description

The Seco 02827895 is a SEEX09T3AFTN-M08 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.

Specifications

Ansi codeSEEX09T3AFTN-M08
Chip breakerM08
Coating finishTiSiN
Coating processPVD
Corner radius0.0118
Cutter series compatibilityR217.53-09; R220.53-09
Cutting edge effective length0.3748
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert styleSEEX
Iso codeSEEX09T3AFTN-M08
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSEEX09T3AFTN-M08
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNeutral
Rake angle0
Relief angle20
Secondary workpiece materialSteel; Hard Material
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
