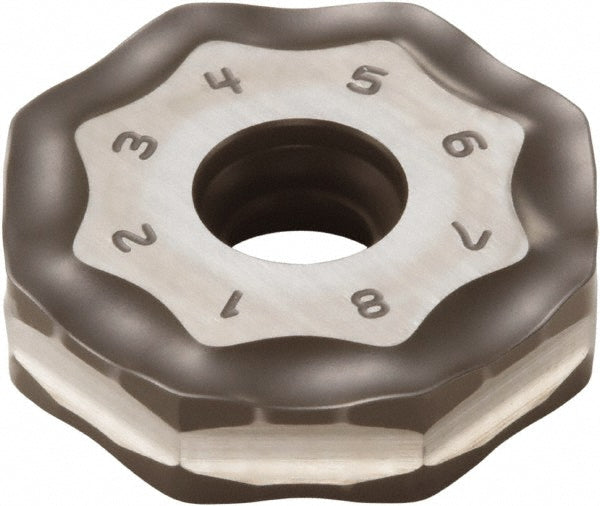

ONMU090520ANTN-M15 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02827992
MFR# 02827992ISO/ANSI# ONMU090520ANTN-M15Cat# ONMU090520ANTN-M15Series ONMU-09
$44.13List $56.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 02827992 is a ONMU090520ANTN-M15 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeONMU090520ANTN-M15
Chip breakerM15
Coating finishTiSiN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityR220.48-09; L220.48-09
Cutting edge effective length0.3031
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree135
Inscribed circle0.8661
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size09
Insert size code090520
Insert styleONMU
Iso codeONMU090520ANTN-M15
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberONMU090520ANTN-M15
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.3031
Multi use toolYes
Number of cutting edges16
Primary workpiece materialCast Iron
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialSteel; Hard Material
ShapeOctagon
Single or double sided insertDouble
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.8661
