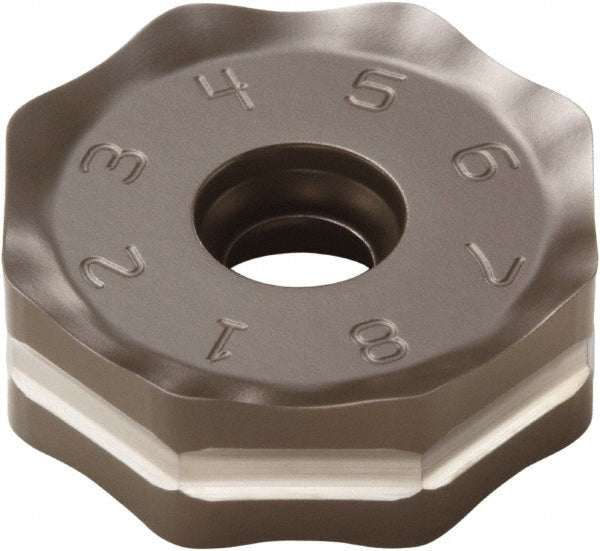

ONMU090520ANTN-M12 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02827995
MFR# 02827995ISO/ANSI# ONMU090520ANTN-M12Cat# ONMU090520ANTN-M12Series ONMU-09
$53.57List $67.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 02827995 is a ONMU090520ANTN-M12 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeONMU090520ANTN-M12
Chip breakerM12
Coating finishTiSiN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityR220.48-09; L220.48-09
Cutting edge effective length0.2874
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree135
Inscribed circle0.8661
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size09
Insert size code090520
Insert styleONMU
Iso codeONMU090520ANTN-M12
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberONMU090520ANTN-M12
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.2874
Multi use toolYes
Number of cutting edges16
Primary workpiece materialCast Iron
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialSteel; Hard Material
ShapeOctagon
Single or double sided insertDouble
StandardsISO
Thickness0.2677
Thickness range0.2500 to 0.3500
Width0.8661
