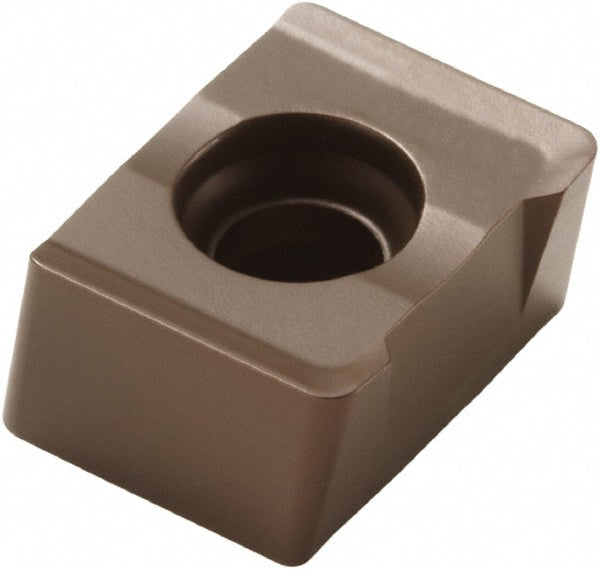

LNKT080516PPTN-M06 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02828045
MFR# 02828045ISO/ANSI# LNKT080516PPTN-M06Cat# LNKT080516PPTN-M06Series LNKT-08
$34.41List $42.56
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 02828045 is a LNKT080516PPTN-M06 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeLNKT080516PPTN-M06
Chip breakerM06
Coating finishTiSiN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityR335.18
Cutting edge effective length0.2835
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2835
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code080516
Insert styleLNKT
Iso codeLNKT080516PPTN-M06
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberLNKT080516PPTN-M06
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.2835
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialSteel; Hard Material
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width0.2835
