Seco

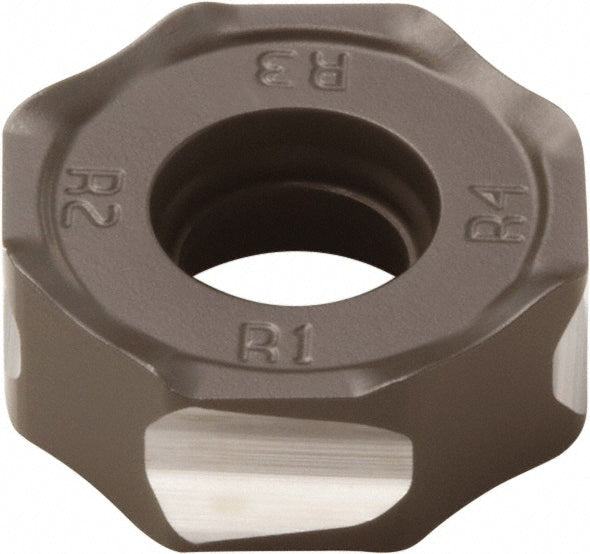

ONEU050410ZZTN4-M10 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02828069
MFR# 02828069ISO/ANSI# ONEU050410ZZTN4-M10Cat# ONEU050410ZZTN4-M10Series ONEU-05
$44.22List $55.72
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 02828069 is a ONEU050410ZZTN4-M10 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeONEU050410ZZTN4-M10
Chip breakerM10
Coating finishTiSiN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR217.48-05; R220.48-05
Cutting edge effective length0.1260
Cutting edge styleWiper
Hole diameter0.1969
Included angle degree135
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code050410
Insert styleONEU
Iso codeONEU050410ZZTN4-M10
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberONEU050410ZZTN4-M10
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.1339
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel; Hard Material
ShapeOctagon
Single or double sided insertDouble
StandardsISO
Thickness0.1673
Thickness range0.1500 to 0.1750
Width0.4724
