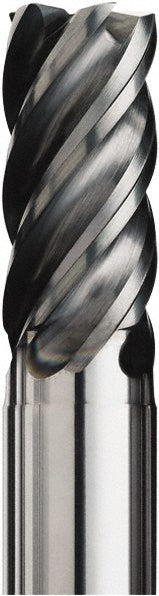

0.2362" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, SIRON-A - Seco 02828205

MFR# 02828205Cat# JHP951060D2C.0Z4-SIRASeries JHP951

$88.47List $113.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingSIRON-A

Description

The Seco 02828205 is a 0.2362 4-flute Solid Carbide corner radius & corner chamfer end mill with a SIRON-A finish for longer tool life. Suited for steel, cast iron. Series JHP951.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.20

Chamfer width0.0079

ChipbreakerNo

Coating finishSIRON-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleHigh

Length of cut0.5512

Length typeShort

Manufacturers catalog numberJHP951060D2C.0Z4-SIRA

Material removal typeRoughing & Finishing

Mill diameter0.2362

Mill diameter tolerancee7

Number of flutes4

Overall length (mm)55.00

PitchNormal

Primary workpiece materialSteel; Cast Iron

Reach length (mm)14.00

Secondary workpiece materialSteel

Shank diameter (mm)6.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum (mm)0.01

Variable helixNo

Variable indexNo
