Seco

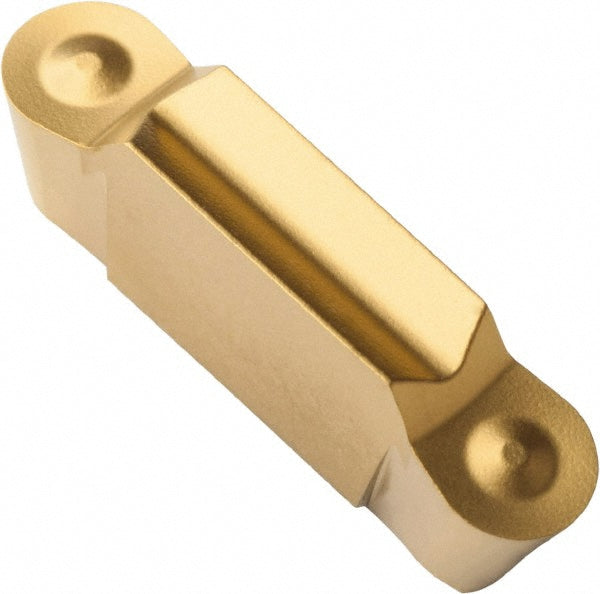

Solid Carbide Insert, Grade CP200, Coated - Seco 02844549
MFR# 02844549Series MDT
$66.69List $85.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP200
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02844549 is a solid carbide indexable insert, grade CP200, Coated coated. Suited for superalloy, titanium.
Specifications
ChipbreakerRP
Coating finishCoated
Coating processPVD
Corner radius0.1180
Cutting height0.1620
Full radiusYes
Full radius insertYes
Insert handNeutral
Insert holding methodClamp
Insert length0.7079
Insert materialSolid Carbide
Insert seat size16
Insert size code1606M0
Insert styleLCGF
Manufacturer gradeCP200
Material gradeMicrograin
Maximum cutting width0.2362
Primary workpiece materialSuperalloy; Titanium
Single or double endDouble
Thickness0.1772
