Seco

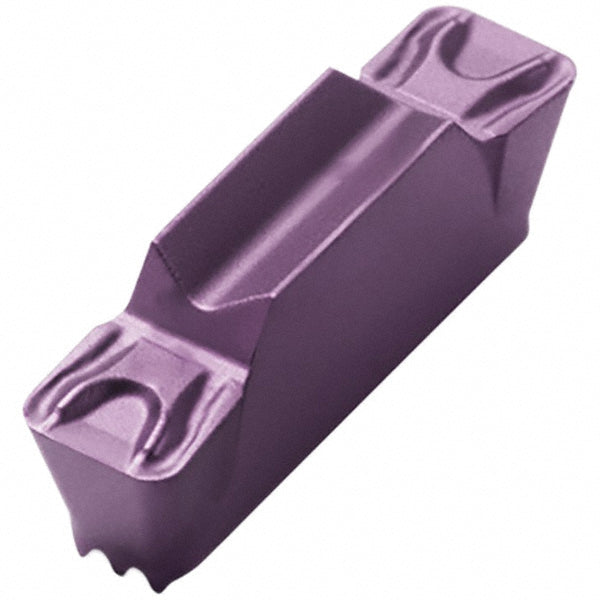

Solid Carbide Insert, Grade TGH1050, Coated - Seco 02844609
MFR# 02844609Series LCMF
$51.77List $65.24
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTGH1050
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02844609 is a solid carbide indexable insert, grade TGH1050, Coated coated. Suited for superalloy, titanium.
Specifications
ChipbreakerFT
Coating finishCoated
Coating processPVD
Corner radius (mm)0.40
Cutting height0.1772
Insert handNeutral
Insert holding methodClamp
Insert length0.6260
Insert materialSolid Carbide
Insert seat size4
Insert size code160404
Insert styleLCMF
Manufacturer gradeTGH1050
Material gradeC1
Maximum cutting width0.1570
Primary workpiece materialSuperalloy; Titanium
Single or double endDouble
Thickness0.1772
