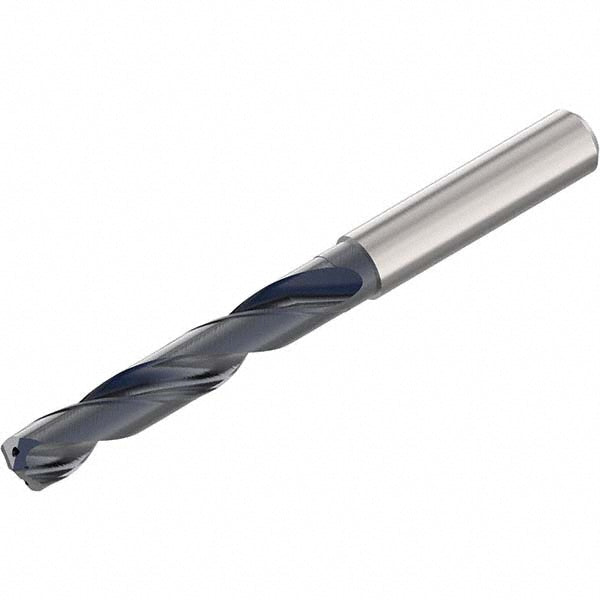

0.1182" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02897845

Seco

0.1182" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02897845

MFR# 02897845Series SD1105A

$110.32List $141.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlCrN

Description

The Seco 02897845 is a 0.1182" Solid Carbide drill bit with a AlCrN finish, 140° point. Suited for steel, stainless steel, cast iron, hard material. Series SD1105A.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.1182
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Drill point length0.0217
Flute by diameter ratio5xD
Flute length1.1032
Flute typeSpiral
Maximum drilling depth1.1032
Number of flats0
Number of flutes2
Overall length2.6004in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter0.2364
Shank length1.4184in
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceHigh Performance
