0.2009" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02897874

Seco

0.2009" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02897874

MFR# 02897874Series SD1105A

$110.32List $141.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlCrN

Description

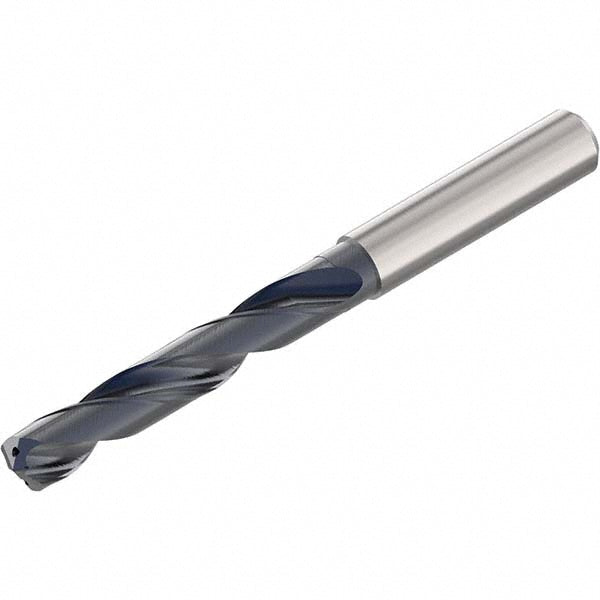

The Seco 02897874 is a 0.2009" Solid Carbide drill bit with a AlCrN finish, 140° point. Suited for steel, stainless steel, cast iron, hard material. Series SD1105A.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.2009
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Drill point length0.0366
Flute by diameter ratio7xD
Flute length1.7336
Flute typeSpiral
Maximum drilling depth1.7336
Number of flats0
Number of flutes2
Overall length3.2308
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter0.2364
Shank length1.4184
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceHigh Performance
