7/32" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02897881

Seco

7/32" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02897881

MFR# 02897881Series SD1105A

$110.32List $141.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2
CoatingAlCrN

Description

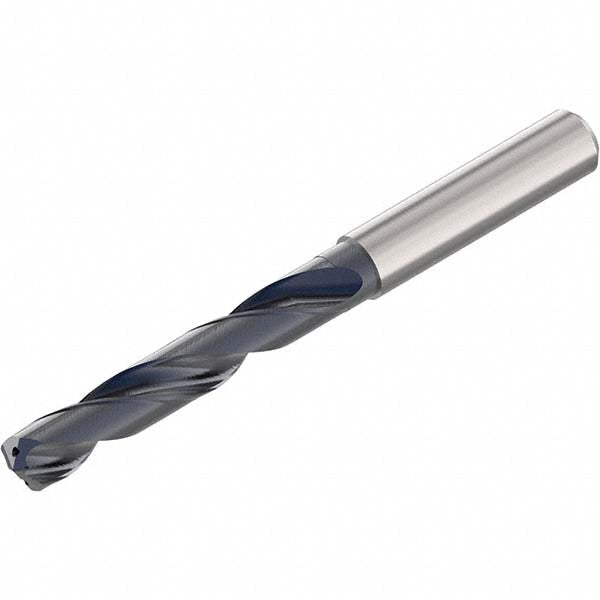

The Seco 02897881 is a 7/32" Solid Carbide drill bit with a AlCrN finish, 140° point. Suited for steel, stainless steel, cast iron, hard material. Series SD1105A.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size in7/32
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Drill point length0.0398
Flute by diameter ratio7xD
Flute length1.7323
Flute typeSpiral
Maximum drilling depth1.7323
Number of flats0
Number of flutes2
Overall length3.2283in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter0.2362
Shank length1.4173in
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceHigh Performance
