0.3270" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02897916

Seco

0.3270" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02897916

MFR# 02897916Series SD1105A

$154.93List $198.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlCrN

Description

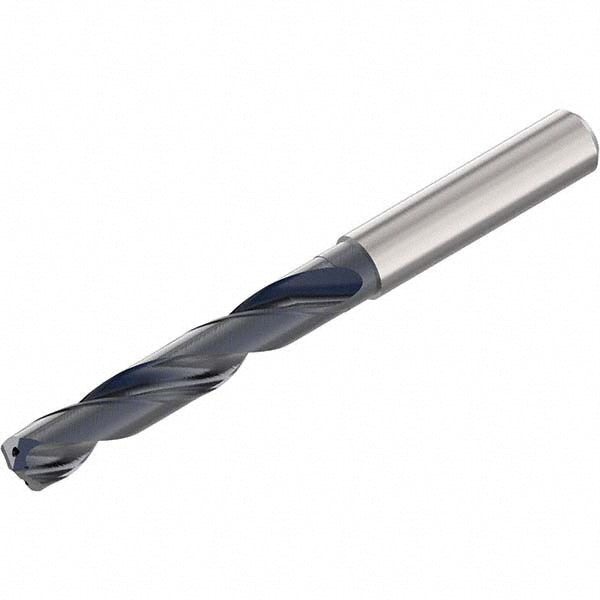

The Seco 02897916 is a 0.3270" Solid Carbide drill bit with a AlCrN finish, 140° point. Suited for steel, stainless steel, cast iron, hard material. Series SD1105A.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.3270
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Drill point length0.0595
Flute by diameter ratio6xD
Flute length2.4034
Flute typeSpiral
Maximum drilling depth2.4034
Number of flats0
Number of flutes2
Overall length4.0582
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter0.3940
Shank length1.5760
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceHigh Performance
