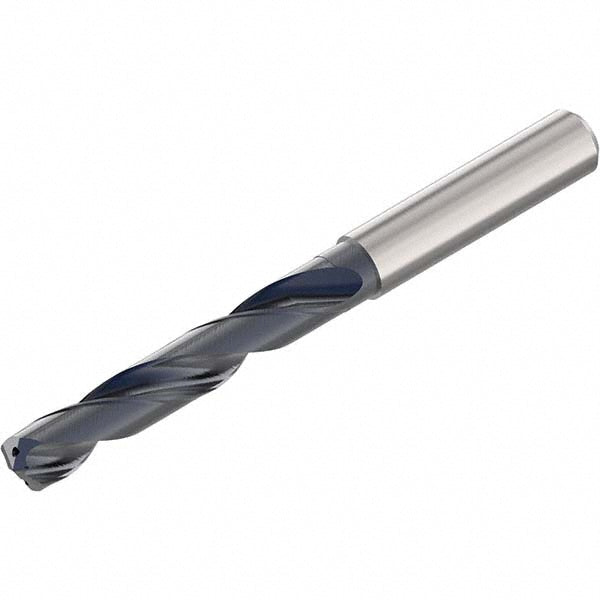

27/64" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02897948

Seco

27/64" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02897948

MFR# 02897948Series SD1105A

$261.47List $335.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size27/64
Flutes2
CoatingAlCrN

Description

The Seco 02897948 is a 27/64" Solid Carbide drill bit with a AlCrN finish, 140° point. Suited for steel, stainless steel, cast iron, hard material. Series SD1105A.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Drill point length0.0768
Flute by diameter ratio6xD
Flute length2.7953
Flute typeSpiral
Maximum drilling depth2.7953
Number of flats0
Number of flutes2
Overall length4.6457in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter0.4724
Shank length1.7717in
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceHigh Performance
