0.6580" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02898020

Seco

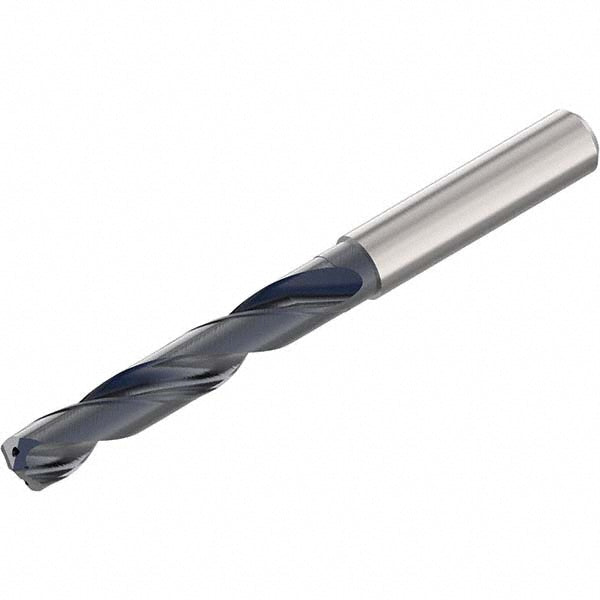

0.6580" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02898020

MFR# 02898020Series SD1105A

$518.73List $665.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlCrN

Description

The Seco 02898020 is a 0.6580" Solid Carbide drill bit with a AlCrN finish, 140° point. Suited for steel, stainless steel, cast iron, hard material. Series SD1105A.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.6580
Drill bit size range0.6500+
Drill point angle degrees140
Drill point length0.1198
Flute by diameter ratio5xD
Flute length3.6642
Flute typeSpiral
Maximum drilling depth3.6642
Number of flats0
Number of flutes2
Overall length5.6342
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter0.7092
Shank length1.8912
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceHigh Performance
