Seco

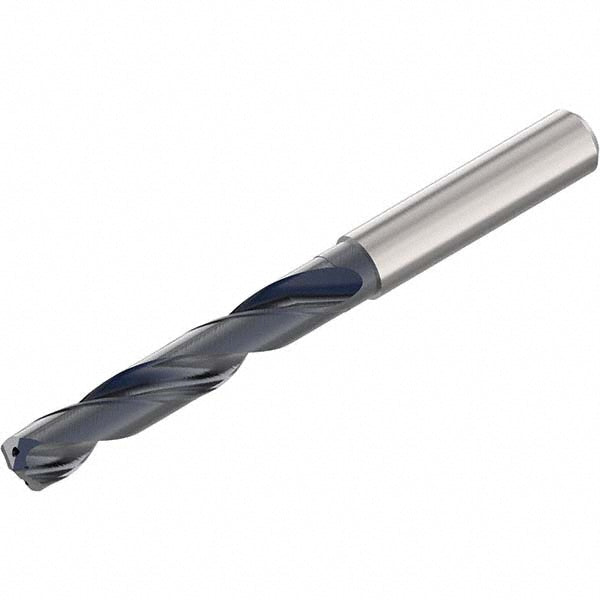

0.6895" Solid Carbide Drill Bit, TiAlN, 140° point - Seco 02898029
MFR# 02898029Series SD1105A
$518.73List $665.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Seco 02898029 is a 0.6895" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series SD1105A.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.6895
Drill bit size range0.6500+
Drill point angle degrees140
Drill point length0.1257
Flute by diameter ratio5xD
Flute length3.6642
Flute typeRegular Spiral
Maximum drilling depth3.6642
Number of flats0
Number of flutes2
Overall length5.6342
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.7092
Shank length1.8912
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceHigh Performance
