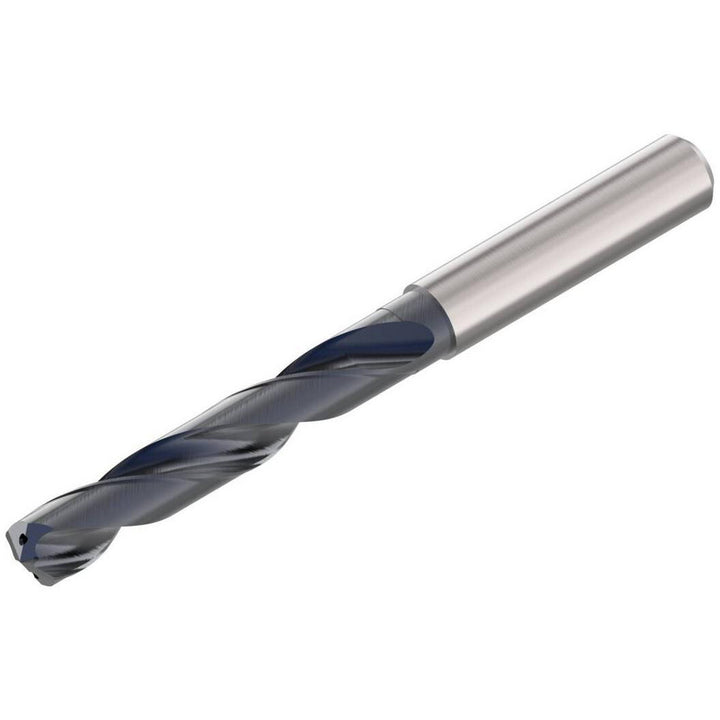

0.7565" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02898047

Seco

0.7565" Solid Carbide Drill Bit, AlCrN, 140° point - Seco 02898047

MFR# 02898047Series SD1105A

$660.54List $847.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlCrN

Description

The Seco 02898047 is a 0.7565" Solid Carbide drill bit with a AlCrN finish, 140° point. Suited for steel, stainless steel, cast iron, hard material. Series SD1105A.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.7565
Drill bit size range0.6500+
Drill point angle degrees140
Drill point length0.1375
Flute by diameter ratio5xD
Flute length3.9794
Flute typeSpiral
Maximum drilling depth3.9794
Number of flats0
Number of flutes2
Overall length6.0282
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter0.7880
Shank length1.9700
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
