Seco

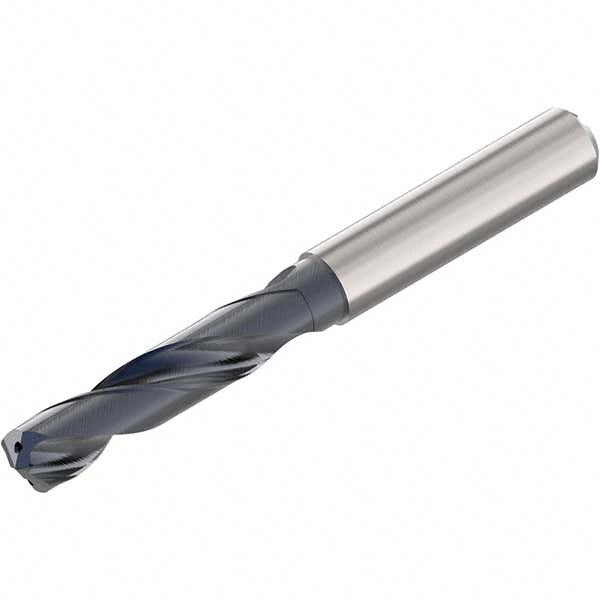

0.1182" Solid Carbide Drill Bit, TiAlN, 140° point - Seco 02898244
MFR# 02898244
$91.78List $117.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Seco 02898244 is a 0.1182" Solid Carbide drill bit with a TiAlN finish, 140° point.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.1182
Drill bit size range0.1000 to 0.1500
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)20.00
Flute typeRegular Spiral
Maximum drilling depth (mm)14.00
Number of flutes2
Overall length2.4409
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
