Seco

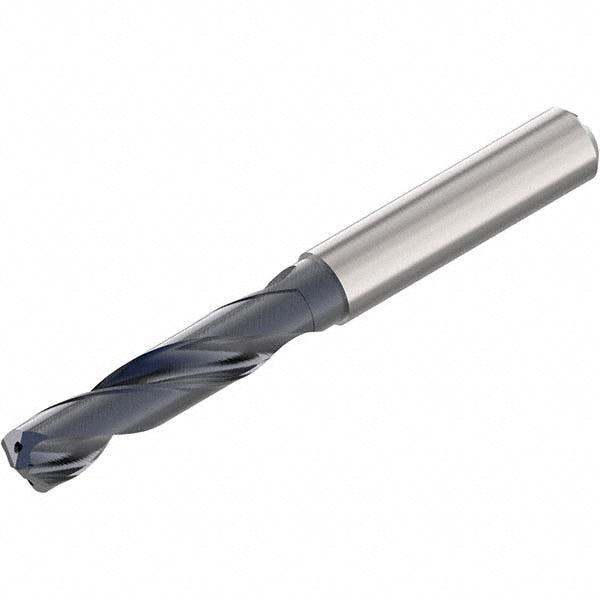

0.2008" Solid Carbide Screw Machine Drill Bit, 140° point - Seco 02898272
MFR# 02898272Series SD1103A
$91.78List $117.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 02898272 is a 0.2008" Solid Carbide Screw Machine drill bit, 140° point. Series SD1103A.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.2008
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)0.90
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeSpiral
Maximum drilling depth (mm)20.00
Number of flutes2
Overall length2.5984in
Point typeStandard
Shank diameter0.2362
Shank length1.4173in
Shank typeStraight-Cylindrical
StandardsDIN
Tool materialSolid Carbide
Tool performanceUniversal
Web thinningWeb-Thinned
