Seco
17/64" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Seco 02898295
MFR# 02898295Series SD1103A
$131.88List $169.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
CoatingTiAlN
Description

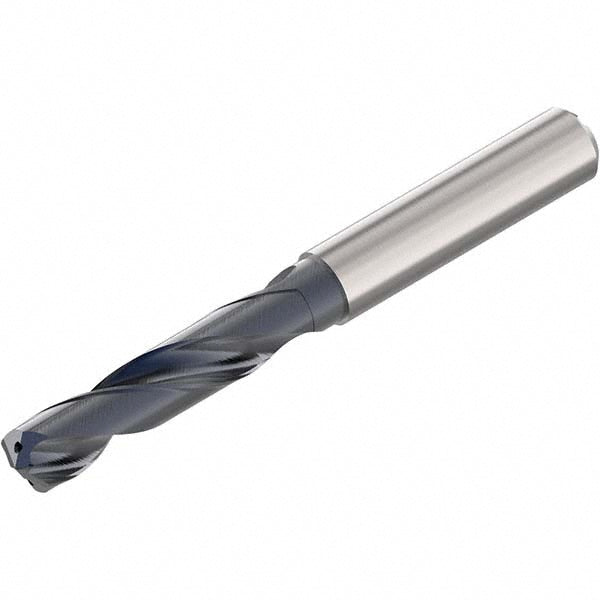

The Seco 02898295 is a 17/64" Solid Carbide Screw Machine drill bit with a TiAlN finish, 140° point. Series SD1103A.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in17/64
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)1.20
Flute by diameter ratio3xD
Flute length (mm)34.00
Flute typeRegular Spiral
Maximum drilling depth (mm)24.00
Number of flutes2
Overall length3.1102
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Spiral typeRegular
StandardsDIN
Tool materialSolid Carbide
Tool performanceUniversal
Web thinningWeb-Thinned
