Seco

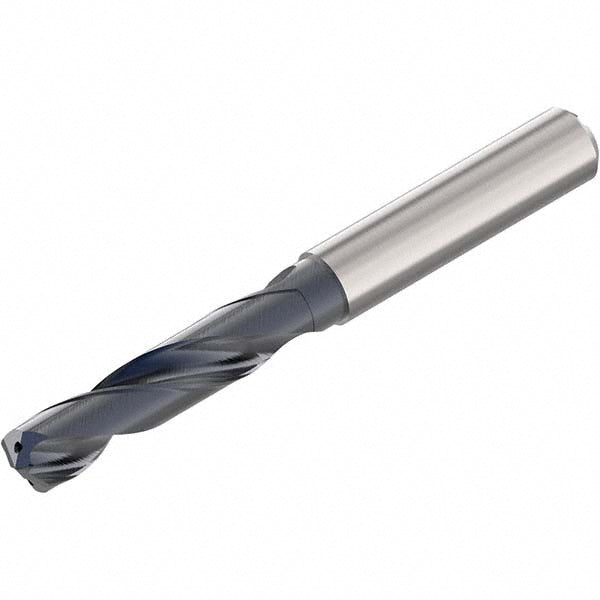

21/64" Solid Carbide Screw Machine Drill Bit, TiAlN, 140° point - Seco 02898316
MFR# 02898316Series SD1103A
$158.27List $202.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/64
Flutes2
CoatingTiAlN
Description
The Seco 02898316 is a 21/64" Solid Carbide Screw Machine drill bit with a TiAlN finish, 140° point. Series SD1103A.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in21/64
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)1.50
Flute by diameter ratio3xD
Flute length (mm)47.00
Flute typeRegular Spiral
Maximum drilling depth (mm)35.00
Number of flutes2
Overall length3.5039
Point typeStandard
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Spiral typeRegular
StandardsDIN
Tool materialSolid Carbide
Tool performanceUniversal
Web thinningWeb-Thinned
