Seco
0.5079" Solid Carbide Screw Machine Drill Bit, 140° point - Seco 02898371
MFR# 02898371Series SD1103A
$261.04List $334.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

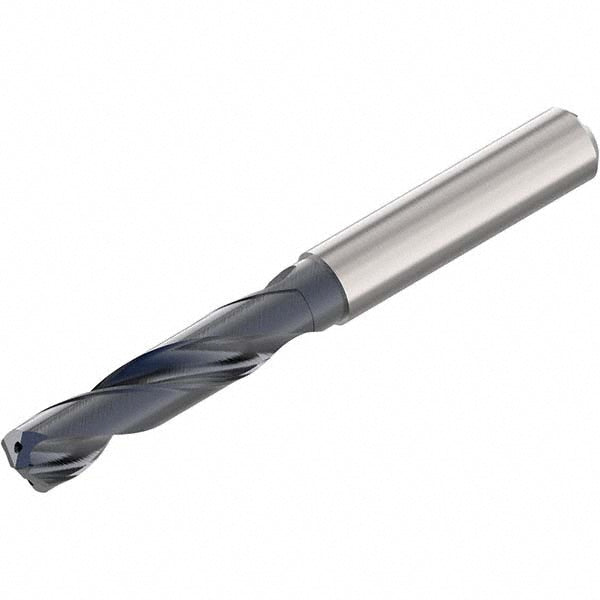

The Seco 02898371 is a 0.5079" Solid Carbide Screw Machine drill bit, 140° point. Series SD1103A.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.5079
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)2.30
Flute by diameter ratio3xD
Flute length (mm)60.00
Flute typeSpiral
Maximum drilling depth (mm)43.00
Number of flutes2
Overall length4.2126in
Point typeStandard
Shank diameter0.5512
Shank length1.7717in
Shank typeStraight-Cylindrical
StandardsDIN
Tool materialSolid Carbide
Tool performanceUniversal
Web thinningWeb-Thinned
