Seco

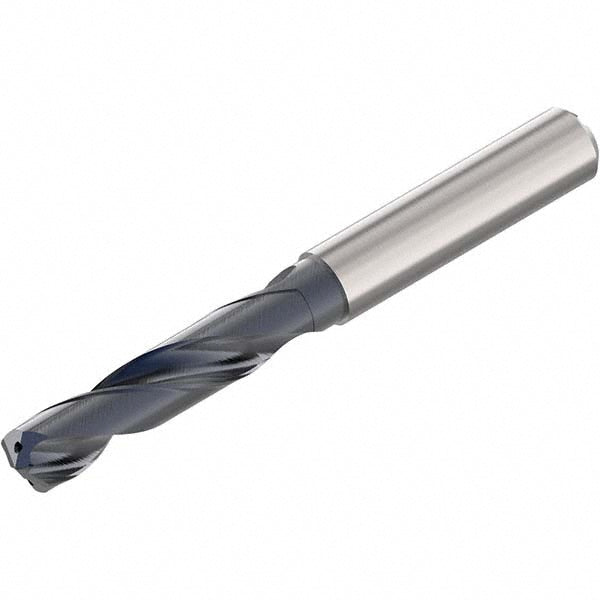

33/64" Solid Carbide Drill Bit, TiAlN, 140° point - Seco 02898373
MFR# 02898373
$261.04List $334.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size33/64
Flutes2
CoatingTiAlN
Description
The Seco 02898373 is a 33/64" Solid Carbide drill bit with a TiAlN finish, 140° point.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size in33/64
Drill bit size range0.5000 to 0.6000
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)60.00
Flute typeRegular Spiral
Maximum drilling depth (mm)43.00
Number of flutes2
Overall length4.2126
Point typeStandard
Shank diameter0.5512
Shank length1.7717
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
