Seco
0.5512" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Seco 02899115
MFR# 02899115Series SD1103A
$210.52List $270.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description

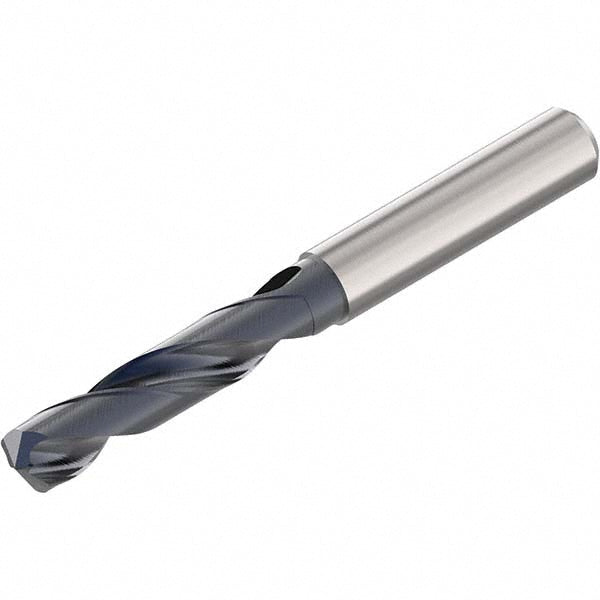

The Seco 02899115 is a 0.5512" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Series SD1103A.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.5512
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)2.60
Flute by diameter ratio3xD
Flute length (mm)60.00
Flute typeSpiral
Maximum drilling depth (mm)43.00
Number of flutes2
Overall length (mm)107.0000
Point typeStandard
Shank diameter (mm)14.0000
Shank length (mm)45.000
Shank typeStraight-Cylindrical
StandardsDIN
Tool materialSolid Carbide
Tool performanceUniversal
Web thinningWeb-Thinned
