Seco

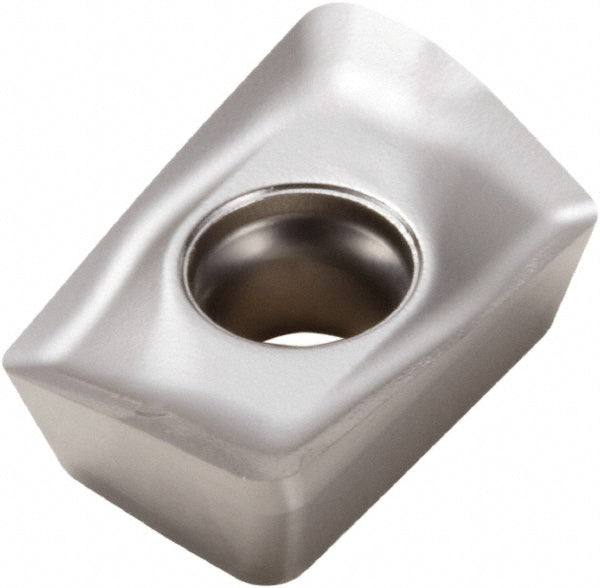

XOEX10T308R-M06 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 02899467
MFR# 02899467ISO/ANSI# XOEX10T308R-M06Cat# XOEX10T308R-M06Series XOEX-10
$30.40List $38.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02899467 is a XOEX10T308R-M06 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeXOEX10T308R-M06
Chip breakerM06
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-10; R220.69-10
Cutting edge effective length0.3819
Cutting edge styleHoned
Hole diameter0.1181
Included angle degree90
Inscribed circle0.2717
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleXOEX
Iso codeXOEX10T308R-M06
Length0.3819
Length range0.3200 to 0.4000
Manufacturers catalog numberXOEX10T308R-M06
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.3819
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle15.1
Relief angle15.00
Secondary workpiece materialSteel; Stainless Steel
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1496
Thickness range0.1250 to 0.1500
Width0.2717
