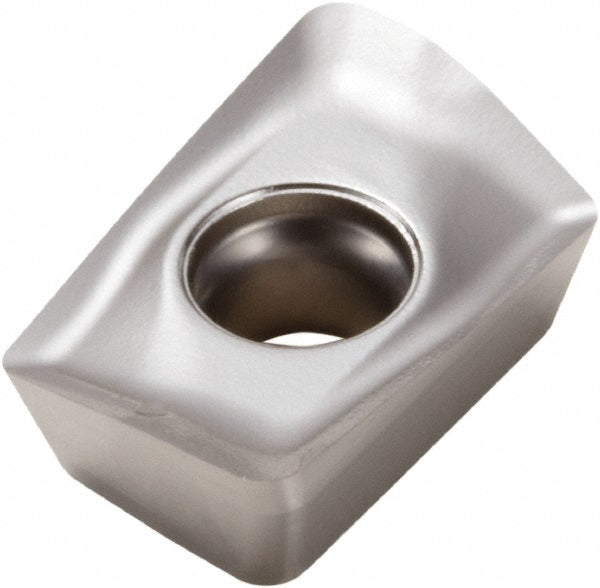

XOEX120408R-M07 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 02899473
MFR# 02899473ISO/ANSI# XOEX120408R-M07Cat# XOEX120408R-M07Series XOEX-12
$31.32List $40.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02899473 is a XOEX120408R-M07 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeXOEX120408R-M07
Chip breakerM07
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.4724
Cutting edge styleHoned
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleXOEX
Iso codeXOEX120408R-M07
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberXOEX120408R-M07
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle20.3
Relief angle15
Secondary workpiece materialSteel; Stainless Steel
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1980
Thickness range0.1850 to 0.2000
Width0.3228
