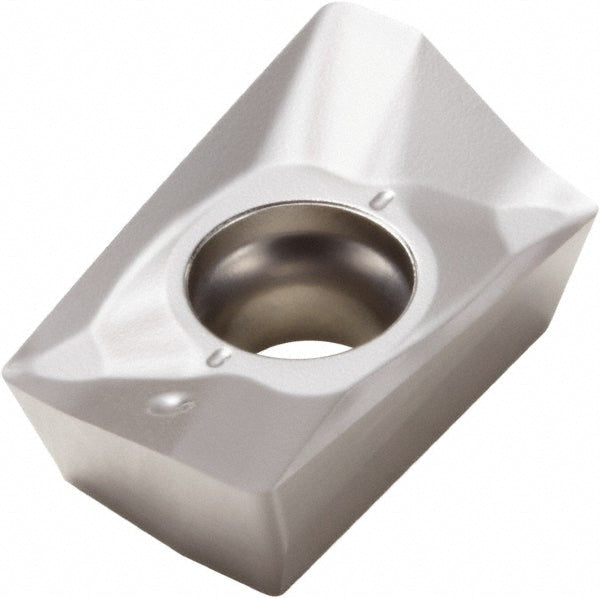

XOMX180608R-M10 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 02899483
MFR# 02899483ISO/ANSI# XOMX180608R-M10Cat# XOMX180608R-M10Series XOMX-18
$39.93List $50.32
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02899483 is a XOMX180608R-M10 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeXOMX180608R-M10
Chip breakerM10
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleHoned
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180608
Insert styleXOMX
Iso codeXOMX180608R-M10
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180608R-M10
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle22.4
Relief angle15
Secondary workpiece materialSteel; Stainless Steel
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.4409
