Seco

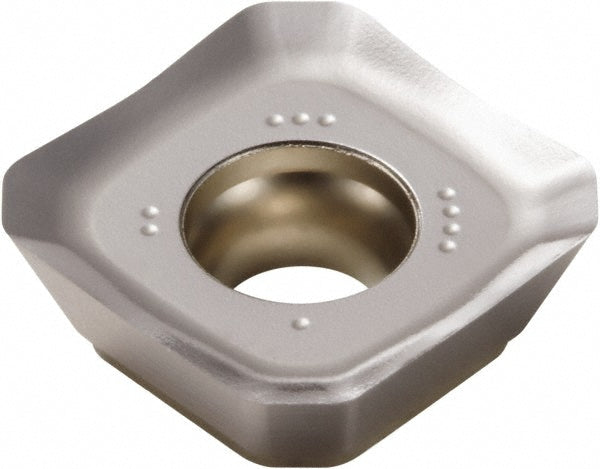

SEEX09T3AFN-M05 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 02899501
MFR# 02899501ISO/ANSI# SEEX09T3AFN-M05Cat# SEEX09T3AFN-M05Series SEEX-09
$20.71List $26.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02899501 is a SEEX09T3AFN-M05 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeSEEX09T3AFN-M05
Chip breakerM05
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutter series compatibilityR217.53-09; R220.53-09
Cutting edge effective length0.3748
Cutting edge styleHoned
Hole diameter0.1378
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert styleSEEX
Iso codeSEEX09T3AFN-M05
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSEEX09T3AFN-M05
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNeutral
Rake angle0
Relief angle20.00
Secondary workpiece materialSteel; Stainless Steel
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
