Seco

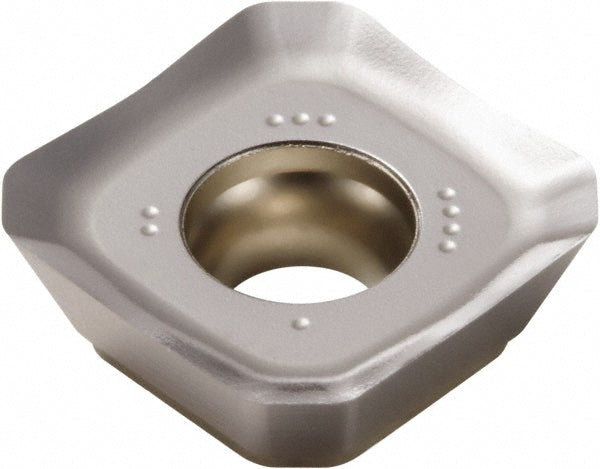

SEEX1204AFN-M10 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 02899502
MFR# 02899502ISO/ANSI# SEEX1204AFN-M10Cat# SEEX1204AFN-M10Series SEEX-12
$29.30List $37.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02899502 is a SEEX1204AFN-M10 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeSEEX1204AFN-M10
Chip breakerM10
Coating finishTiAlN
Coating processPVD
Corner radius0.0441
Cutter series compatibilityR217.53-12; R220.53-12
Cutting edge effective length0.5000
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSEEX
Iso codeSEEX1204AFN-M10
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEEX1204AFN-M10
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.3425
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle5
Relief angle20
Secondary workpiece materialSteel; Stainless Steel
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
