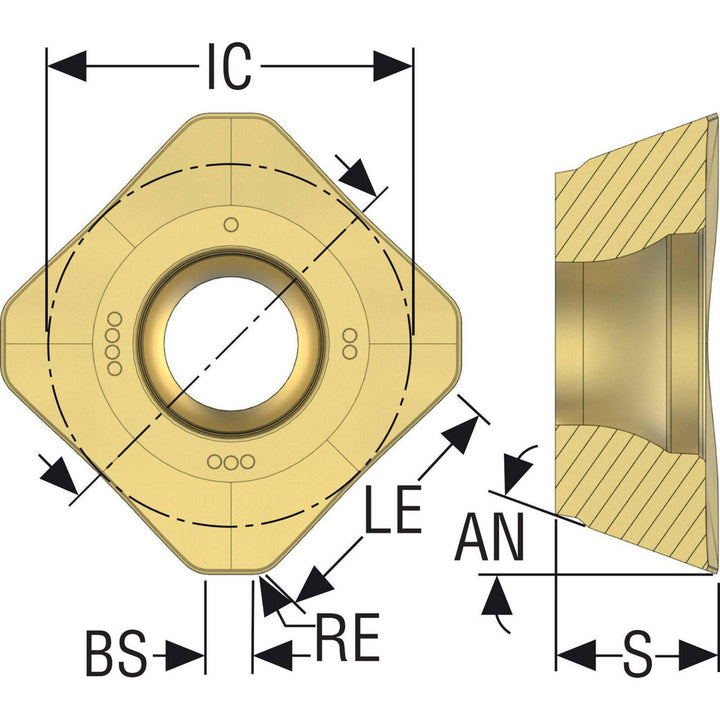

SEEX1505AFN-M12 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 02899503

Seco

SEEX1505AFN-M12 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 02899503

MFR# 02899503ISO/ANSI# SEEX1505AFN-M12Cat# SEEX1505AFN-M12Series SEEX-15

$35.12List $45.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeSquare
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 02899503 is a SEEX1505AFN-M12 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.

Specifications

Ansi codeSEEX1505AFN-M12
Chip breakerM12
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Cutter series compatibilityR220.53-15
Cutting edge effective length0.6248
Cutting edge styleHoned
Hole diameter0.2205
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1505
Insert styleSEEX
Iso codeSEEX1505AFN-M12
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberSEEX1505AFN-M12
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.4055
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle5
Relief angle20.00
Secondary workpiece materialSteel; Stainless Steel
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
