Seco

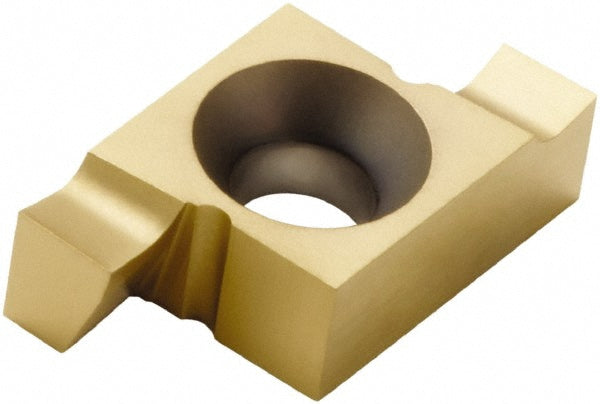

Solid Carbide Insert, Grade CP500, TiAlN - Seco 02902980
MFR# 02902980Series X4
$74.77List $95.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02902980 is a solid carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerFG
Coating finishTiAlN
Coating processPVD
Corner radius0.0059
Cutting height0.8020
Cutting width0.0846
External relief angle6
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size2503015
Insert size code25030150215
Insert styleX4GK
Lead angle0
Manufacturer gradeCP500
Material gradeMicrograin
Maximum depth of cut (mm)6.00
Maximum depth of cut range (mm)5.00 to 10.00
Multi use toolYes
Overall length (mm)25.00
Overall width (mm)3.10
Primary workpiece materialUniversal
RakePositive
Rake angle6.00
Single or double endDouble
StandardsISO
