Seco

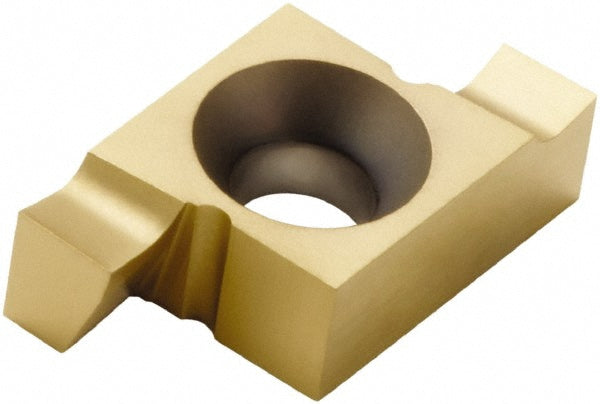

Carbide Insert, Grade CP500, TiAlN - Seco 02902989
MFR# 02902989Series X4
$74.77List $95.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02902989 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerR
Coating finishTiAlN
Coating processPVD
Corner radius0.0236
Cutting height0.8020
Cutting width0.0472
External relief angle6
Full radiusYes
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2503M0
Insert size code250300120
Insert styleX4GK
Lead angle0
Manufacturer gradeCP500
Material gradeMicrograin
Maximum depth of cut (mm)4.00
Maximum depth of cut range (mm)4.00 to 5.00
Multi use toolYes
Overall width (mm)3.10
Primary workpiece materialUniversal
RakePositive
Rake angle6
StandardsISO
