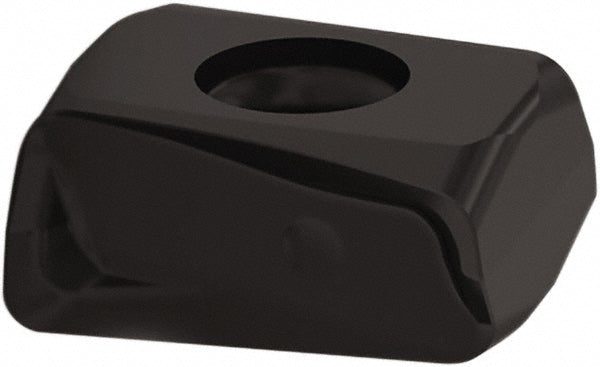

LOEX080404TR-MD08 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02903470
MFR# 02903470ISO/ANSI# LOEX080404TR-MD08Cat# LOEX080404TR-MD08Series LOEX-08
$38.33List $48.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 02903470 is a LOEX080404TR-MD08 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeLOEX080404TR-MD08
Chip breakerMD08
Coating finishTiSiN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityR217.94-08; R220.94-08
Cutting edge effective length0.3268
Cutting edge styleT-Land
Hole diameter0.2028
Included angle degree90
Inscribed circle0.1732
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code080404
Insert styleLOEX
Iso codeLOEX080404TR-MD08
Length0.3661
Length range0.3200 to 0.4000
Manufacturers catalog numberLOEX080404TR-MD08
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.3268
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle29
Relief angle0
Secondary workpiece materialSteel; Hard Material
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.2626
Thickness range0.2500 to 0.3500
Width0.1732
