Seco

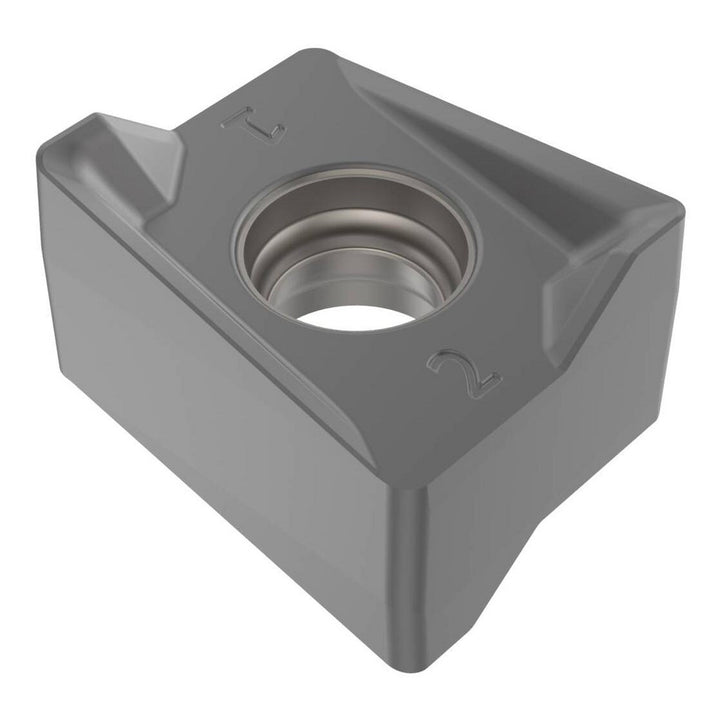

RI-LN14-20117-M13 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02903522
MFR# 02903522ISO/ANSI# RI-LN14-20117-M13Cat# LN140708TR-M13Series LN14
$42.93
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02903522 is a RI-LN14-20117-M13 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeLN140708TR-M13
Chip breakerM13
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR220-LN14
Cutting edge effective length0.5512
Cutting edge styleT-Land
Hole diameter0.1811
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size14
Insert size code140708
Insert styleLN14
Iso codeRI-LN14-20117-M13
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberLN140708TR-M13
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.4921
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle26.5
Relief angle0.00
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.3039
Thickness range0.2500 to 0.3500
Width0.4331
