Seco

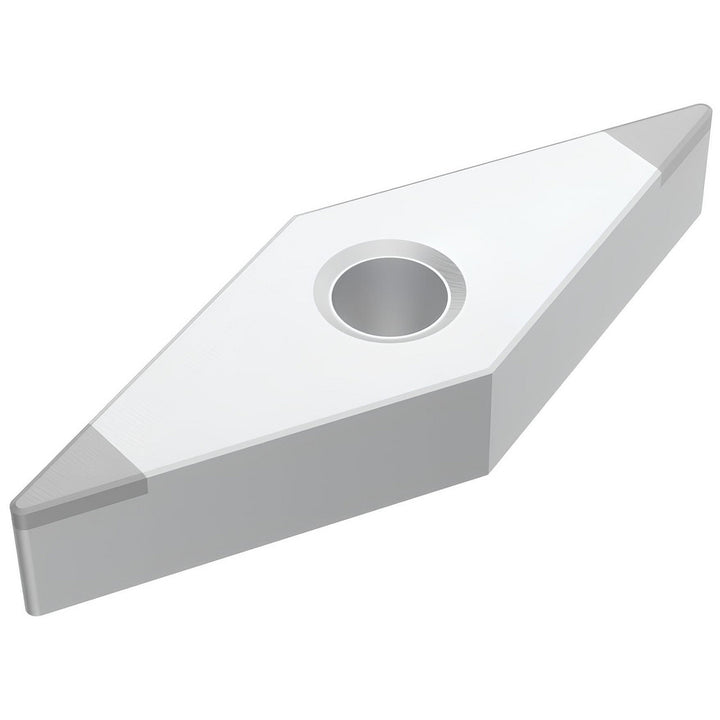

VNGA160402S-01020-L1-B Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN010 - Seco 02910963
MFR# 02910963ISO/ANSI# VNGA330.5S-00420-L1-BSeries VNGA-Flat Top
$110.91
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeCBN010
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Description
The Seco 02910963 is a VNGA160402S-01020-L1-B polycrystalline cubic boron nitride (pcbn) indexable insert, grade CBN010. Suited for hard material.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating processPCBN
Corner radius in1/128
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGA330.5S-00420-L1-B
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2598
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 35
Insert size code330.5
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA160402S-01020-L1-B
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02910963
Manufacturer gradeCBN010
Material gradeH01; H10; H20
Maximum depth of cut0.0200
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSuper-alloys & Titanium
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1730
Tolerance codeG
Width in3/8in
Wiper edgeNo
