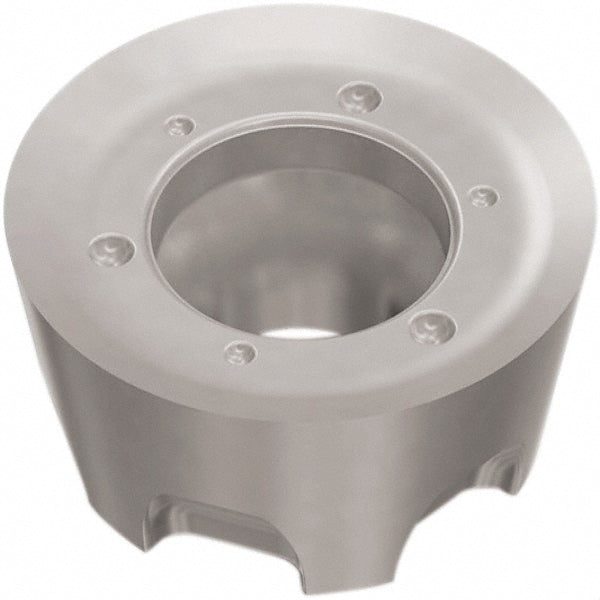

RPHT1204M0-6-E05 Solid Carbide Insert, Grade H25 - Seco 02923693

Seco

RPHT1204M0-6-E05 Solid Carbide Insert, Grade H25 - Seco 02923693

MFR# 02923693ISO/ANSI# RPHT1204M0-6-E05Cat# RPHT1204M0-6-E05Series RPHT-12

$15.75List $20.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeH25
MaterialSolid Carbide

Description

The Seco 02923693 is a RPHT1204M0-6-E05 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.

Specifications

Ansi codeRPHT1204M0-6-E05
Chip breakerE05
Coating processUncoated
Corner radius0.2362
Cutter series compatibilityR217.29-06; R220.29-06
Cutting edge effective length0.2362
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPHT
Iso codeRPHT1204M0-6-E05
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRPHT1204M0-6-E05
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges6
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle11
Secondary workpiece materialSuperalloys & Titanium
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
