Seco

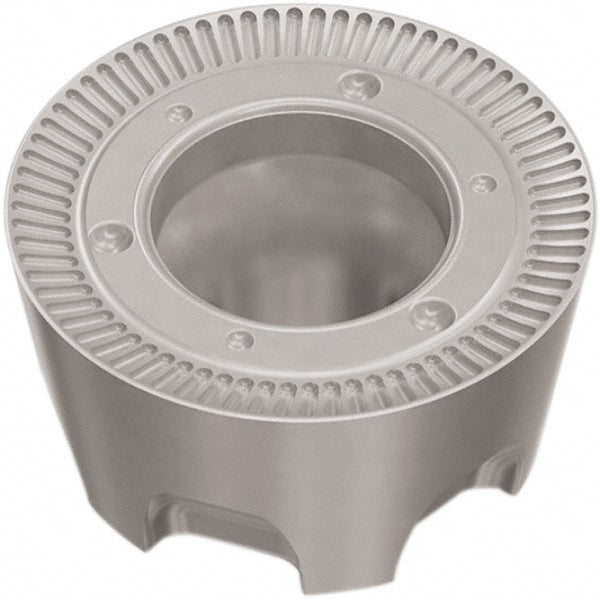

RPHT1204M0T-6-ME07 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 02923700
MFR# 02923700ISO/ANSI# RPHT1204M0T-6-ME07Cat# RPHT1204M0T-6-ME07Series RPHT-12
$21.93List $27.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02923700 is a RPHT1204M0T-6-ME07 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeRPHT1204M0T-6-ME07
Chip breakerME07
Coating finishTiAlN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityR217.29-06; R220.29-06
Cutting edge effective length0.2362
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPHT
Iso codeRPHT1204M0T-6-ME07
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRPHT1204M0T-6-ME07
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle20
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
