Seco

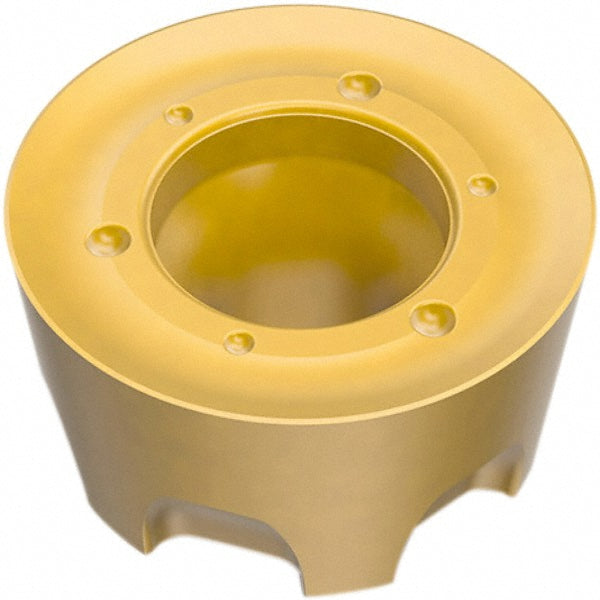

RPHT1204M0T-6-M08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02923701
MFR# 02923701ISO/ANSI# RPHT1204M0T-6-M08Cat# RPHT1204M0T-6-M08Series RPHT-12
$17.35List $22.24
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02923701 is a RPHT1204M0T-6-M08 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeRPHT1204M0T-6-M08
Chip breakerM08
Coating finishTiAlN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityR217.29-06; R220.29-06
Cutting edge effective length0.2362
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPHT
Iso codeRPHT1204M0T-6-M08
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRPHT1204M0T-6-M08
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle16
Relief angle11.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
