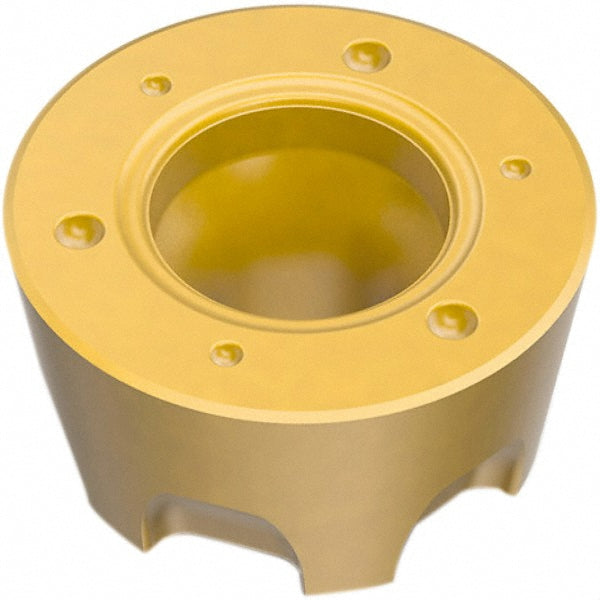

RPHW1204M0T-6-MD12 Solid Carbide Insert, Grade MH1000, TiAlN - Seco 02923727

Seco

RPHW1204M0T-6-MD12 Solid Carbide Insert, Grade MH1000, TiAlN - Seco 02923727

MFR# 02923727ISO/ANSI# RPHW1204M0T-6-MD12Cat# RPHW1204M0T-6-MD12Series RPHW-12

$16.34List $20.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeMH1000
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 02923727 is a RPHW1204M0T-6-MD12 solid carbide indexable insert, grade MH1000, TiAlN coated. Suited for hard material.

Specifications

Ansi codeRPHW1204M0T-6-MD12
Chip breakerMD12
Coating finishTiAlN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityR217.29-06; R220.29-06
Cutting edge effective length0.2362
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPHW
Iso codeRPHW1204M0T-6-MD12
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRPHW1204M0T-6-MD12
Manufacturer gradeMH1000
Material applicationHard Material; Cast Iron
Material gradeUltra Fine Grain
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges6
Primary workpiece materialHard Material
RakeNeutral
Rake angle0
Relief angle11.00
Secondary workpiece materialCast Iron
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
