Seco

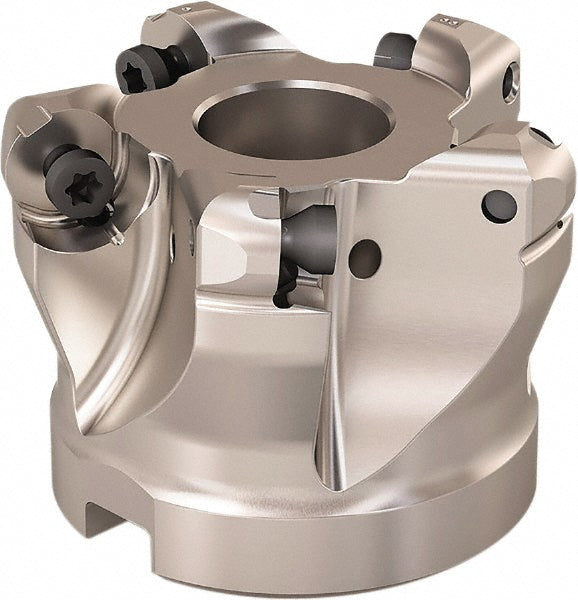

2" Indexable Milling Cutters - Seco 02949643
MFR# 02949643Series R220.29
$817.33List $868.31
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02949643 indexable milling cutters. Series R220.29.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeRP 1204
Coolant throughYes
Counterbore diameter (mm)19.05
Cutter styleR220.29
Cutting diameter in2
Cutting directionRight Hand
Hub diameter (mm)42.00
Insert holding methodScrew
Insert inscribed circle (mm)12.00
Keyway width0.3200
Maximum cutting diameter2.0000
Maximum depth of cut0.2360
Maximum ramping angle6.50degree
Maximum rpm12500
Minimum cutting diameter (mm)38.80
Number of cutter inserts5
Overall diameter2.0000
Overall height in1-1/2
Tool applicationHelical Interpolation; Ramping
