218.21-230TR-06-MD17 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 02949690

MFR# 02949690ISO/ANSI# 218.21-230TR-06-MD17Cat# 218.21-230TR-06-MD17Series 218.21-230

$38.82List $49.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN

Description

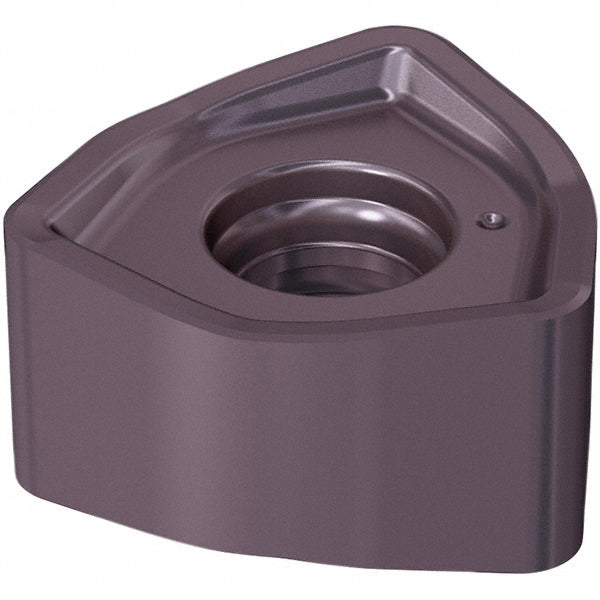

The Seco 02949690 is a 218.21-230TR-06-MD17 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.

Specifications

Ansi code218.21-230TR-06-MD17
Chip breakerMD17
Coating finishTiSiN
Coating processPVD
Convex radius0.3346
Corner radius0.0630
Cutter series compatibilityR220.21-R230
Cutting edge styleT-Land
Hole diameter0.1870
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size230
Insert size code230TR-06
Insert style218.21
Iso code218.21-230TR-06-MD17
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number218.21-230TR-06-MD17
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.0710
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle7
Relief angle0.00
Secondary workpiece materialSteel; Hard Material
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.2370
Thickness range0.2350 to 0.2500
Width in1/2
