Seco

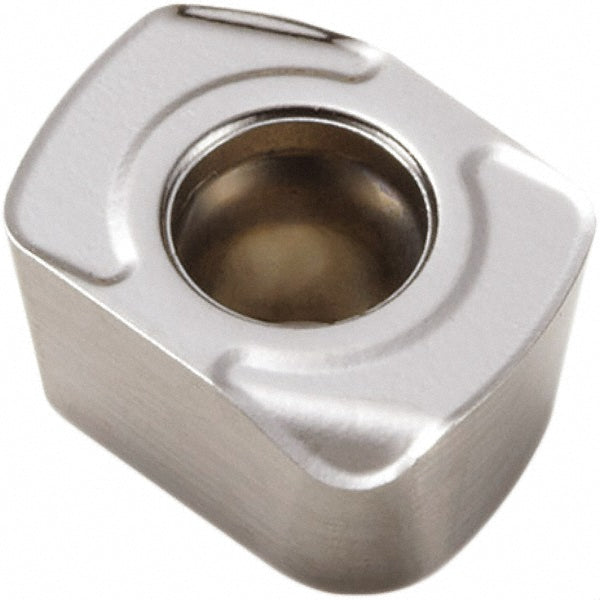

LPKT05T210TR-M05 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 02950463
MFR# 02950463ISO/ANSI# LPKT05T210TR-M05Cat# LPKT05T210TR-M05Series LPKT-05
$15.75List $20.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRectangle
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02950463 is a LPKT05T210TR-M05 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeLPKT05T210TR-M05
Chip breakerM05
Coating finishTiAlN
Coating processPVD
Convex radius0.2520
Corner radius0.0394
Cutter series compatibilityR217.21-LP05
Cutting edge effective length0.2677
Cutting edge styleT-Land
Hole diameter0.0906
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size05
Insert size code05T210
Insert styleLPKT
Iso codeLPKT05T210TR-M05
Length0.2677
Length range0.0000 to 0.3200
Manufacturers catalog numberLPKT05T210TR-M05
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.2677
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle11
Relief angle11
Secondary workpiece materialSteel; Stainless Steel
ShapeRectangle
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1000 to 0.1250
Width0.1996
