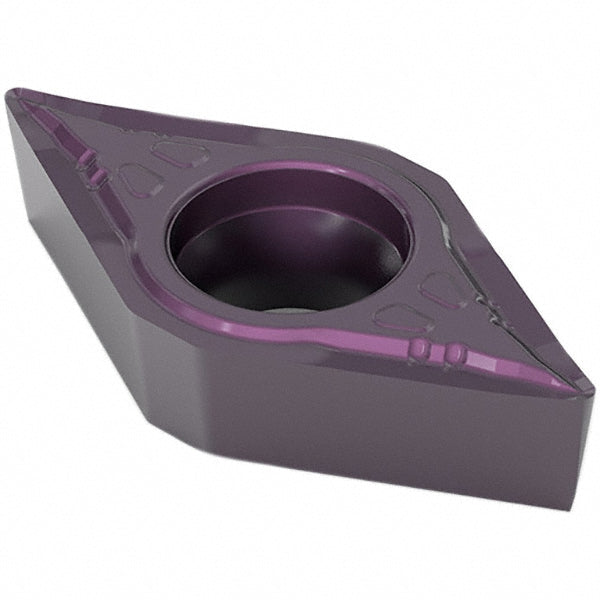

DCGT11T304F-AL Carbide Insert, Grade TS2050, TiAlSiN - Seco 02951297

Seco

DCGT11T304F-AL Carbide Insert, Grade TS2050, TiAlSiN - Seco 02951297

MFR# 02951297ISO/ANSI# DCGT11T304Series DCGT-AL

$26.44List $33.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeTS2050
MaterialCarbide
CoatingTiAlSiN

Description

The Seco 02951297 is a DCGT11T304F-AL carbide indexable insert, grade TS2050, TiAlSiN coated. Suited for superalloys & titanium.

Specifications

Ansi insert codeDCGT32.51
Ansi size code32.51
Chip breakerAL
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Industry standard numberDCGT32.51F-AL
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304F-AL
Iso insert codeDCGT11T304
Iso size code11T304
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number02951297
Manufacturer gradeTS2050
Material gradeS10
Maximum depth of cut0.4409
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Hard Material
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
