Seco

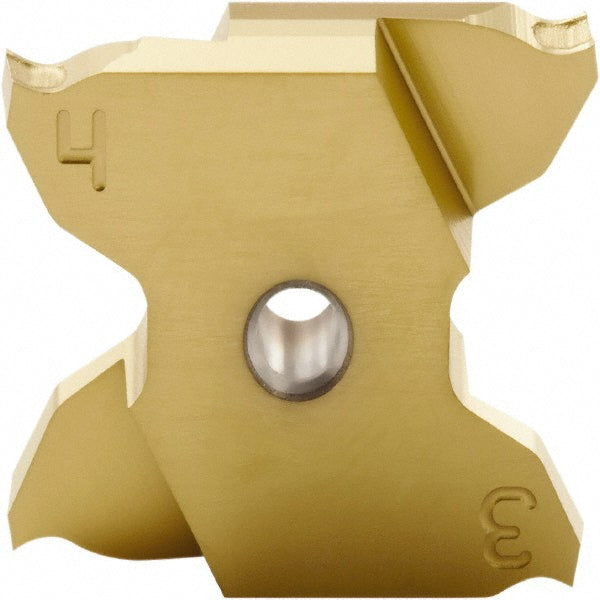

Solid Carbide Insert, Grade CP500, TiAlN - Seco 02952786
MFR# 02952786Series X4
$74.77List $95.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02952786 is a solid carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerMC
Coating finishTiAlN
Coating processPVD
Corner radius (mm)0.05
Cutting height0.8030
Cutting width0.0600
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size2503005
Insert size code2503005015015
Insert styleX4GKR
Lead angle15
Manufacturer gradeCP500
Maximum corner radius0.0031
Maximum depth of cut0.2560
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0008
Multi use toolYes
Overall length0.9990
Primary workpiece materialUniversal
RakePositive
Rake angle6.00
Single or double endDouble
StandardsISO
