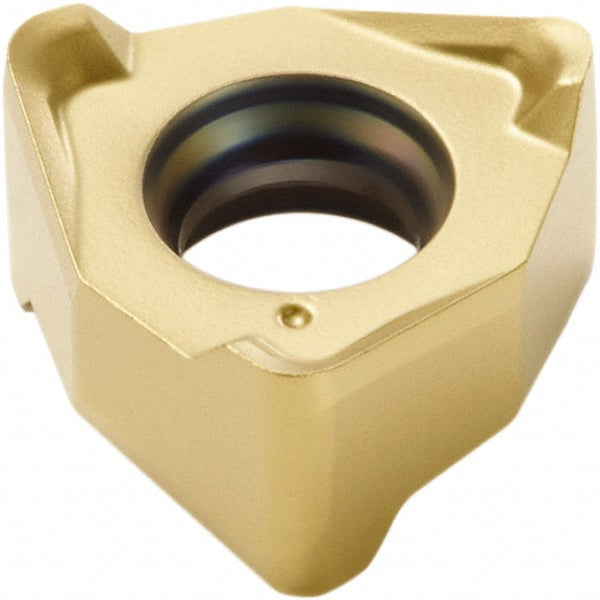

XNEX040308R-M06 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 02955704
MFR# 02955704ISO/ANSI# XNEX040308R-M06Cat# XNEX040308R-M06Series XNEX-04
$28.14List $36.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02955704 is a XNEX040308R-M06 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeXNEX040308R-M06
Chip breakerM06
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.96-04; R220.96-04
Cutting edge effective length0.1575
Cutting edge styleHoned
Hole diameter0.1244
Included angle degree88
Inscribed circle0.2638
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size04
Insert size code040308
Insert styleXNEX
Iso codeXNEX040308R-M06
Length0.1575
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX040308R-M06
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.1575
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle32.6
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.1303
Thickness range0.1250 to 0.1500
Width0.2638
