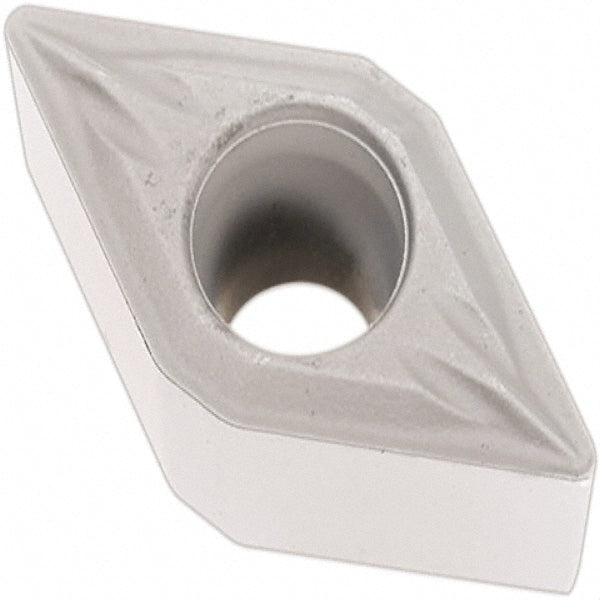

DCMT070204-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02956312

Seco

DCMT070204-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02956312

MFR# 02956312ISO/ANSI# DCMT21.51-MF2Series DCMT-MF2

$13.06List $16.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02956312 is a DCMT070204-MF2 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerMF2
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle55degree
Industry standard numberDCMT21.51-MF2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6142
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204-MF2
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number02956312
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.2913
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
