Seco
TCMT110204-MF2 Carbide Insert, Grade TP2501, TiCN - Seco 02956320
MFR# 02956320ISO/ANSI# TCMT21.51-MF2Series TCMT-MF2
$14.57List $18.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeTP2501
MaterialCarbide
CoatingTiCN
Description

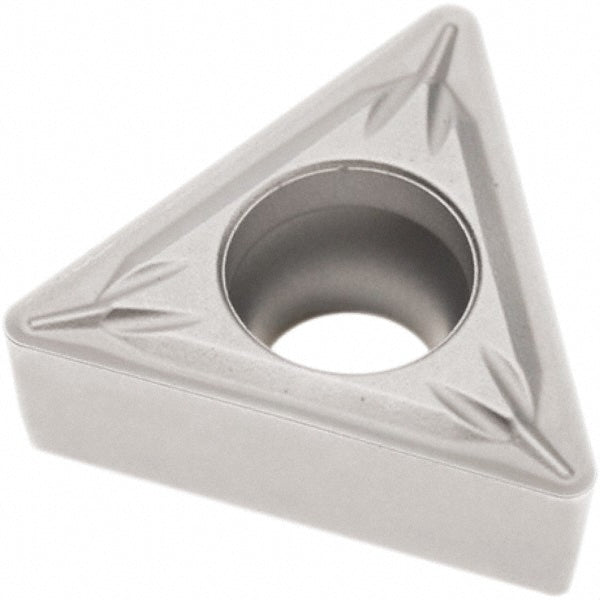

The Seco 02956320 is a TCMT110204-MF2 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerMF2
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle60degree
Industry standard numberTCMT21.51-MF2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110204-MF2
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number02956320
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.3937
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width0.4331in
Wiper edgeNo
